Hydrokraft Hydraulic Pumps

Innovative Hydraulic Sales (I H S) supplies industrial-duty Hydrokraft open-circuit and closed-circuit hydraulic pumps as well as Hydrokraft hydraulic motors.

These are some of the excellent features of the Hydrokraft hydraulic pumps:

  • Axial Piston, Swash Plate Design
  • Fixed or Variable Volume
  • Tandem Mounting Capability
  • Exceptionally Quiet Operation
  • Superior Service Life
  • Contamination Resistance
Hydrokraft Technical Data Sheet

Hydrokraft Opened Circuit Pumps Models:

  • Series PF
  • Series PV
  • Series PFOS
  • Series PVOS
  • Series PFW
  • Series PVW
Hydrokraft Open Circuit  Technical Data Sheet

Hydrokraft Closed Circuit Pumps Models:

  • Series PVG
  • Series PVGS
  • Series TVWS
Hydrokraft Closed Circuit  Technical Data Sheet

If you do not see the Hydrokraft hydraulic pump or motor model that you are looking for, please do not hesitate to contact one of our Fluid Hydraulic Specialists.

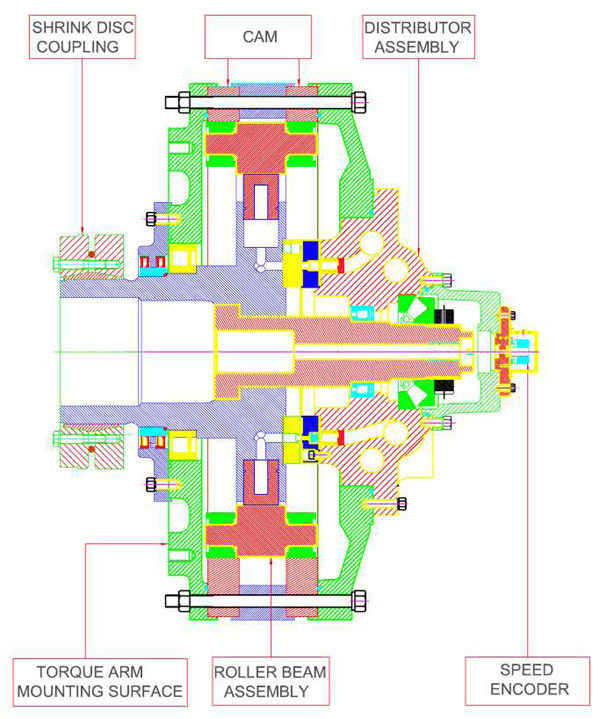

hd-hydraulic-motor-tech-large



MOTOR FRAME SIZE
SPECIFICATION
DISP(*) PER REV
TORQUE
( THEORETICAL )
TORQUE MAX
SPEED RATED
SPEED MAX **
PRESSURE RATED
METRIC
CM3 /REV
NM/BAR
NM
RPM
RPM
BAR
HM 25
25320
402
132660
40
60
345
HM 30
30580
486
160380
35
50
345
HM 36
35460
563
185790
32
42
345
